産品中心-公網機

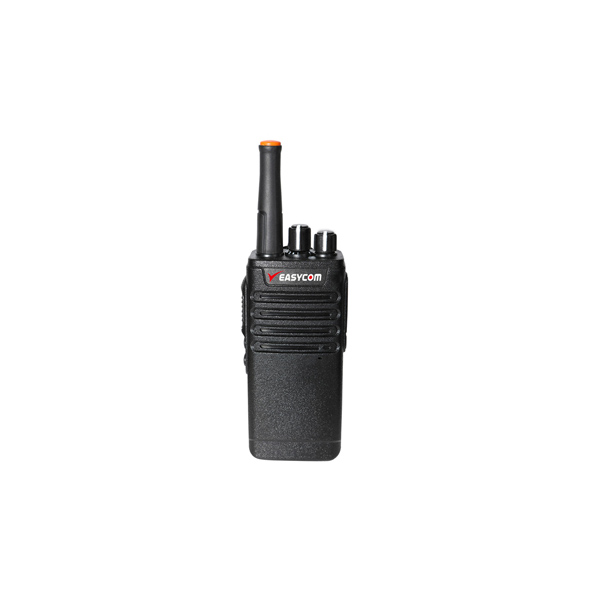

V138
  • V138
  • V138
V138

Features

1. Intercom globally 3G, support WiFi, Bluetooth

2. Exquisite workmanship,and elegant outlooking

3. Cluster intercom, mass response

4. Embedded high extensibility Android system

5. Chinese and English prompt

6. Shortcut key design, convenient to use

7. Support group call, single call

8. Priority calling, Monitor, Recording

9. Level-to-level administration and dispatch

10. Support GPS Location and track

11. Multi platform support, MYT, RealPTT, WalkieFleet, etc

全國服務熱線:0755-28233181 轉 8005

General Specifications

Network support: WCDMA/GSM

Platform: MTK MT6572

Operate system: Android 4.4.2

Memory: 512MB(ROM)+256MB(RAM)

Speaker+handset: Support

earhpone connector: 3.5mm

GPS: Support

battery capacity: 3800mAh

Dimensions: 174*58*35 (H x W x D mm)

Weight: 221g

Standby Time: 23hours


Electrical  Specifications

Working Frequency (Module B18)

WCDMA: Band1 2100MHz; Band8 900MHz;

GSM:GSM850; GSM900; GSM1800; GSM1900


Working Frequency (Module B125)

WCDMA:Band1 2100MHz; Band2 1900MHz; Band5 850MHz

GSM:GSM850; GSM900; GSM1800; GSM1900


Working Voltage DC:3.3~4.2V

Working Current  IDLE mode:≤75mA; Data Transmission mode ≤660mA

Working Temperature/Humidity T: -20℃~+55℃; H: 5%~95%

Storage Temperature: -40℃~+90℃

Rated Audio Output Power: 1.3W

Audio Distortion@ Rated Audio: 10%

Charger: 5V 1A Micro USB

Max Output Power: 24dBm~33dBm, ±2dBm

RX sensitivity: ≤-106dBm
